Fiber Aligners

3DGS technology allows precise creation of high-density fiberoptic arrays that simplify integration, alignment and assembly to reduce cost. Hole-to-hole alignment of less than 0.5 um can be achieved.

Improve and Simplify Integration

High-density arrays simplify integration, alignment, and assembly, speeding up manufacturing and reducing BOM.

ELECTRICAL AND OPTICAL INTEGRATION

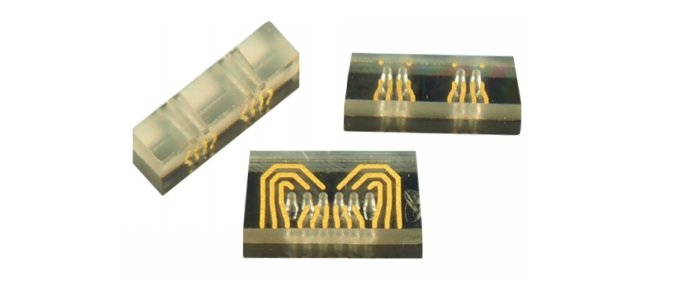

Electrical traces can be combined with thru-holes to maximize integration possibilities and further reducing package sizes.

CUSTOM SOLUTIONS FOR IMPROVED OUTCOMES

Each application is unique in footprint, thermal management requirements, and additional features. Contact us directly with your specific needs.

DESIGN LIMITS


        PARAMETERS
        TYPICAL
        PERFORMANCE LIMITS


        SIZE
         >1mm x 1mm
         <1mm x 1mm


         HEIGHT
        1 – 5mm
        0.25 – 10mm


        FIBER DIAMETERS
        80 – 250 microns
        80 – 250 microns


         CENTER-TO-CENTER ACCURACY
        100nm
        50nm


        DIAMETER ACCURACY
        +/- 1.5 microns
        +/- 1.0 microns
